Bucket Capacity

0.3m³

Boom Length

3620mm

Arm Length

1670mm

Performance

Swing Speed

10.4 rpm

Walking Speed

4.5/2.9/km/h

Bucket Digging Capacity

52.3 kN

Arm Digging Capacity

36.1kN

Mechanical System

Engine Mode

Yanmar 4TNV98

Power Rate

39kw/2100rpm

Cylinder

4

Engine Displacement

3.32L

Hydraulic System

Main Pump Type

Variable piston pumps

Main relief set pressure

25Mpa

Tank Capacity

Fuel Tank

111L

Hydraulic Tank

90L

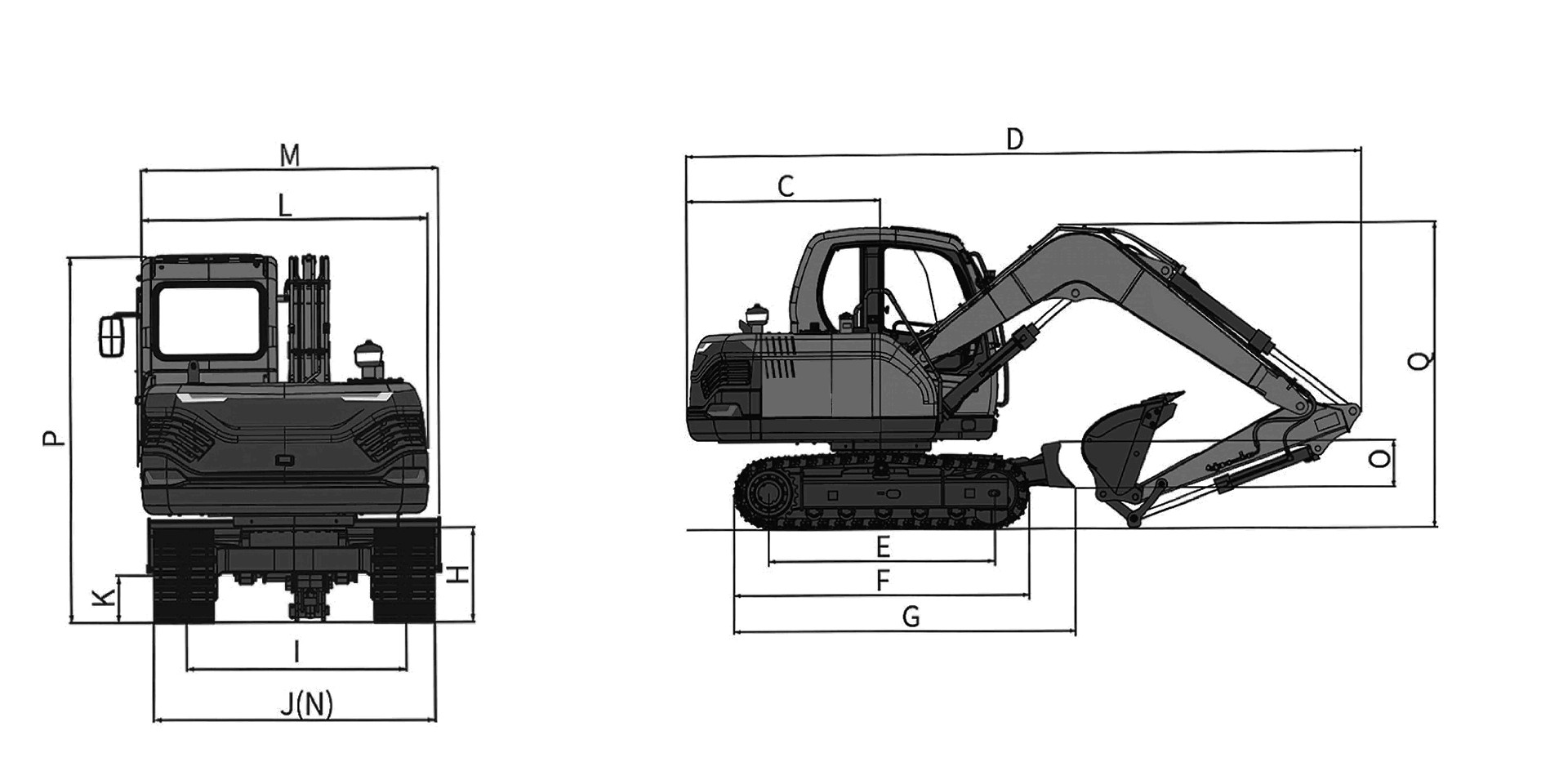

Body Size

Transport Size

6030mm(L) x 2180mm(W) x 2680mm(H)

Track Length

2750mm

Track Shoe Width

450mm

Track Total Width

2100mm

Track Gauge

1650mm

Minimum Ground Clearance

370mm

Front Minimum Swing Radius

1770mm

Bucket Extension Angle

165°

Scope of operation

Maximum Digging Radius

6270mm

Maximum Digging Depth

4080mm

Maximum Digging Height

7100mm

Maximum Dumping Height

5170mm

Maximum Vertical Digging Depth

2670mm

Dozer Plate Width x Height

2100x418mm
